LFC Cast Steel Anode Yoke With Four Stubs For Aluminium Smelter

LFC Cast Steel Anode Yoke with Four Stubs in Potroom Reduction Cell for Aluminium Smelter

1. Introduction

   Production standards

   Material standard: AS2074 C2.ASTM A 216 WCA ,GB11352

   Welding standards:

   Specification: BS EN ISO 15609-1, BS EN ISO 15614-1, BS EN ISO 15614-2

   Qualification of welder: BS EN 287-1 , BS EN ISO 9606-2

   ASTM A 216 WCA



   AS 2074‐2003 Grade C2

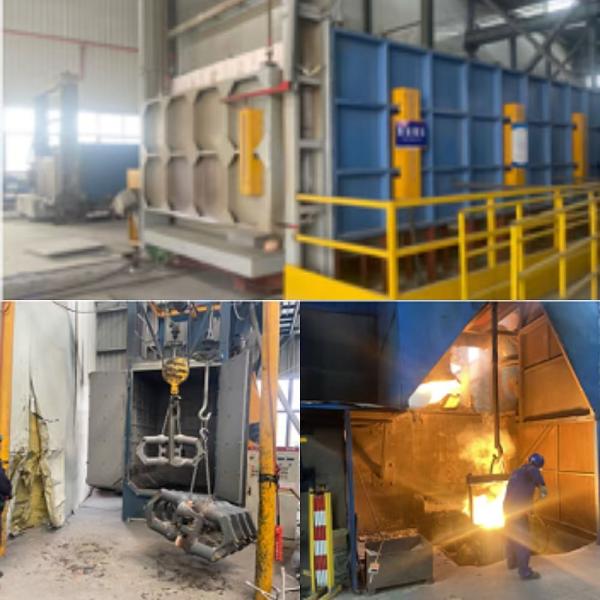

2. Lost Foam Casting (LFC) Technology

• Lost Foam Casting is an advanced casting method. In this process, a foam pattern of the desired part is first created. For the anode yoke, a foam model with the shape and structure including the four stub positions is made. This foam pattern is then coated with a refractory material. When molten steel is poured over the coated foam pattern, the heat causes the foam to decompose and vaporize, and the molten steel fills the space left by the disappearing foam, solidifying to form the anode yoke with high precision and complex details that are difficult to achieve with traditional casting methods.

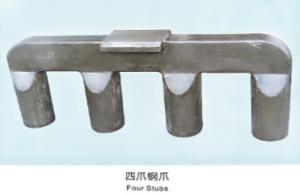

3. Anode Yoke

• The anode yoke is a crucial part in the aluminium smelting potroom reduction cell. It serves as a support structure for the anodes. In the context of aluminium production, anodes are essential for the electrochemical process that reduces alumina to aluminium. The anode yoke provides stability and proper positioning for the anodes within the cell.
• The design with four stubs has specific functionality. These stubs are connection points that play a vital role in the electrical and mechanical connection of the anode yoke within the reduction cell environment. They ensure efficient transfer of electrical current and proper mechanical support during the smelting operation.

4. Role in the Aluminium Smelting Process

• In the potroom reduction cell, the anode yoke with four stubs is an integral part of the anode assembly. The anodes connected to the yoke are immersed in the electrolyte bath within the cell. During the smelting process, a large amount of electrical current passes through the anode yoke and the anodes. The design and quality of the anode yoke directly affect the efficiency of the electrochemical reaction, the stability of the anode operation, and ultimately the quality and productivity of the aluminium smelting process. It helps to maintain a stable electrical field within the cell and ensures the proper consumption of the anodes during the smelting operation.

5. Importance in the Aluminium Smelter

• In an aluminium smelter, the performance of each component in the potroom reduction cell is critical for the overall production efficiency and cost - effectiveness. The LFC cast steel anode yoke with four stubs contributes to the reliable operation of the smelting process. Its proper functioning reduces the risk of anode misalignment, electrical failures, and other issues that could lead to reduced production, increased energy consumption, or premature failure of the cell components. This, in turn, helps to improve the overall performance and competitiveness of the aluminium smelter.
